Features:
- Small and compact size, use common air-cooling system
- Fiber output, can apply flexibly, and can mark several level of curve
- Convenient air cooling system supports long time and stable running of the system
- High overall photoelectric conversion efficiency, small size power supply system
Application:

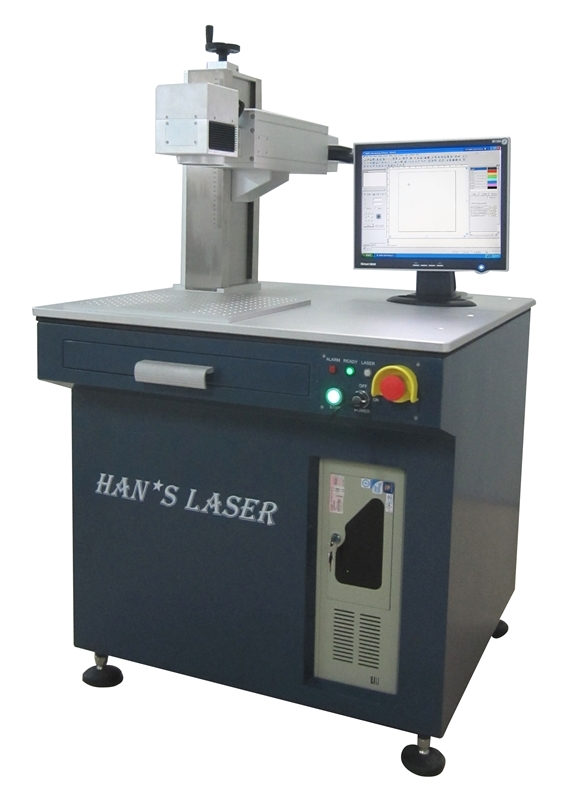

YLP-F series laser marker is widely used in Electronic components, Glasses, watch and clock, Plastic tool, Medical device, IC card, Kitchen and bathroom industry etc.
Spec:
|
Model
|
YLP-MP20
|
|
Average Power
|
=20W MOPA laser generator
|
|
Wavelength
|
1064nm
|
|
Repetition Rate
|
1.6-1000 kHz
|
|
Marking area
|
Standard: 100mm x100mm (standard lens)
|
|
|
Max. size: 400mm x 400mm with special lens
|
|
Beam Quality M2
|
<1.3
|
|
Marking depth
|
=0.4mm
|
|
Marking speed
|
=7000mm/s
|
|
Minimum marking line
|
10µm
|
|
Min. Character size
|
0.1mm
|
|
Repeatability
|
±0.003mm
|
|
Cooling Method
|
Air cooled
|
|
Operating temperature
|
15°C - 35°C
|
|
Power requirement
|
110-220V/Single Phase /60Hz/2.5A
|
|
Power Consumption
|
0.5 kW
|
|
Dimension
|
800x840x1410mm
|
|
Weight
|
260 kg
|
|
Marking Font support
|
Support TTF, SHX , user defined fonts
|
|
Compatible marking file
|
BMP,JPG, PNG, TIF ,PCX ,TAG, IOO ,PNG ,GIF ,PLT
|
|
|
|
 |
|
 |
|
